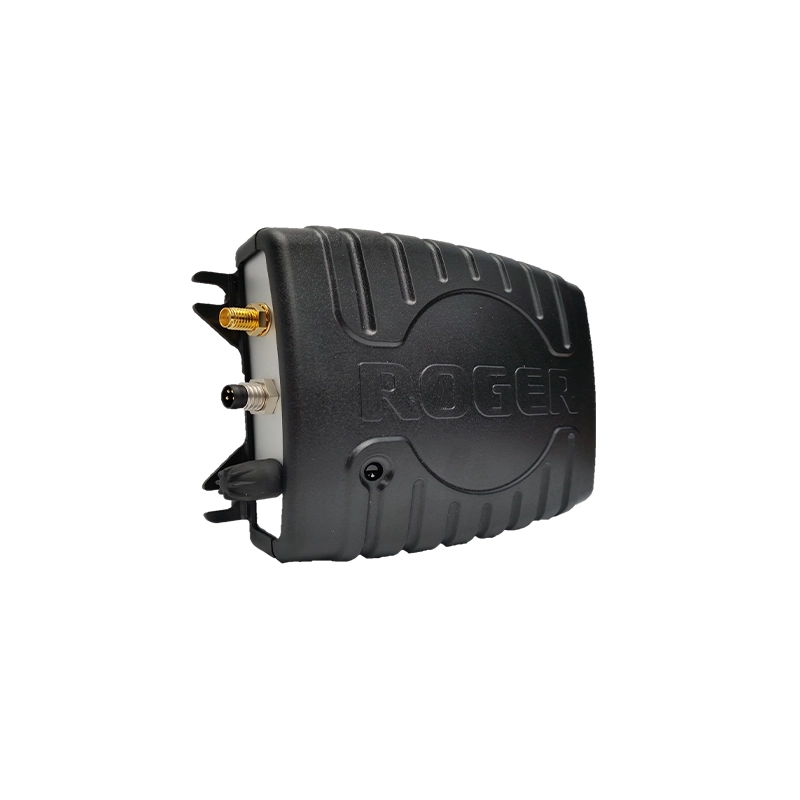

ROGER GALILEO/GPS/GLONASS/BEIDOU repeater operates by receiving satellite signals with an antenna located outside the building and re-radiating the signals to the indoor area or covered space.
Use of re-radiated signals indoors means that GALILEO/GPS/GLONASS/BEIDOU receiver is tracking the current status and signal from the satellites. When a GALILEO/GPS/GLONASS/BEIDOU receiver is moved from covered area to outdoors and vice versa, the receiver is instantly tracking the location instead of time consuming acquisition.
Key Features
• Automatic gain limitation
• Oscillation prevention with indicator
• Maximal coverage for CE approved repeater
• Sustaining GPS L1/GLONASS G1/GALILEO E1/ BEIDOU B1 fix when moving from indoors to outdoors
• Full product family with repeaters, amplifiers and splitters
Technical Specifications (GNSS-L1G1GA)
| Frequency | GPS L1 (1.57542 GHz), GALILEO E1 (1.57542 GHz), GLONASS G1 (1.602 GHz), BEIDOU B1 (1.5611 GHz) |
|---|---|
| Size | 110*143*28 mm |
| Weight | 165 g |
| Overall Gain | > 40 dB |
| Adjustable Gain | 0-40 dB |
| Impedance | 50 Ohm |
| Input connector | SMA-female |
| Operating temperature | – 25 – +55 °C |
| Power supply | +12VDC/300mA |
| Indoor coverage | up to 50 meters |
| Antenna power output | + 5 VDC, 100 mA |
| TX antenna gain | max. +4dBd, RHCP polarisized |
