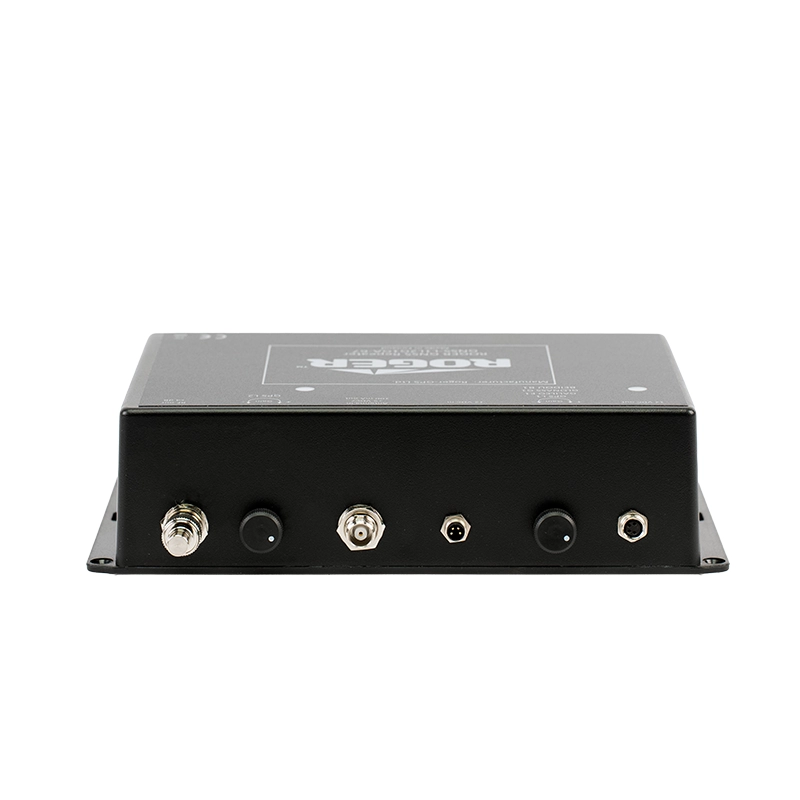

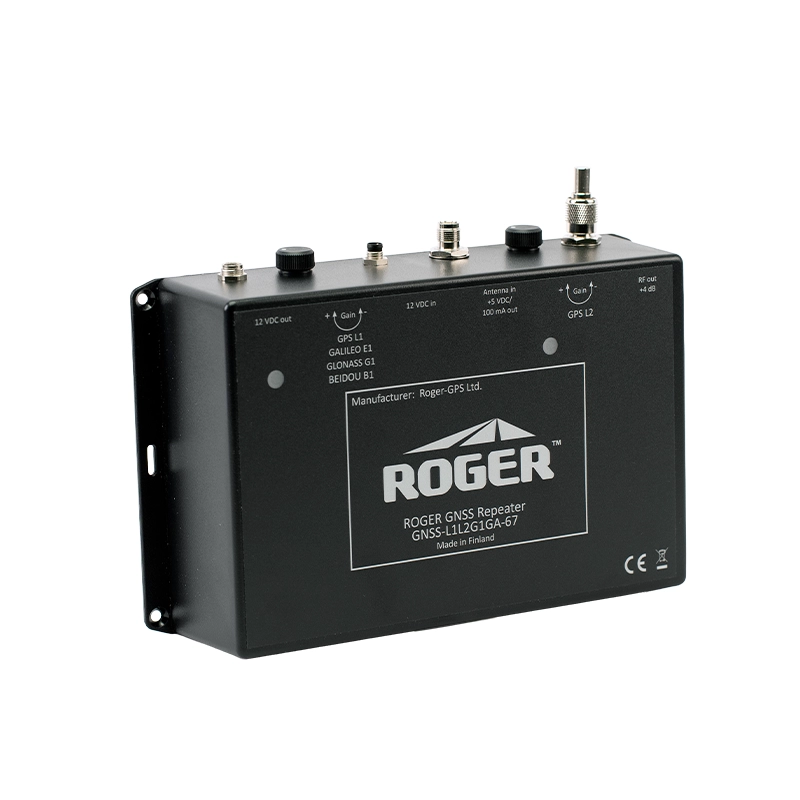

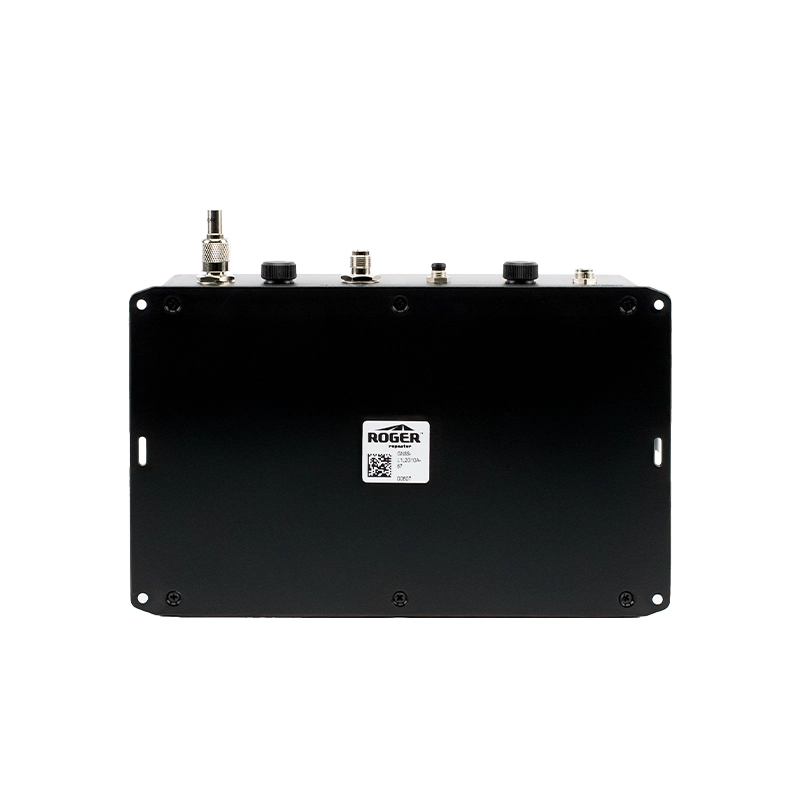

ROGER GNSS repeater operates by receiving GPS/GLONASS/GALILEO/BEIDOU satellite signals with an antenna located outside the building and re-radiating the signals to the indoor area or covered space.
Use of re-radiated signals indoors means that GPS/GLONASS/GALILEO/BEIDOU receiver is tracking the current status and signal from the satellites. When a GPS/GLONASS/GALILEO/BEIDOU receiver is moved from covered area to outdoors and vice versa, the receiver is instantly tracking the location instead of time consuming acquisition.
Key Features
• Easy to chain when using multiple repeaters
• Simple cabling – quick installation
• Automatic gain limitation
• Oscillation prevention with indicator
• Maximal coverage for CE approved repeater
• Sustaining GPS L1/L2/GLONASS/GALILEO/ BEIDOU fix when moving from indoors to outdoors
• Full product family with repeaters, amplifiers and splitters
• All signals in one box
Technical Specifications GNSS-L1L2G1GA-67
| Frequency | GPS L1 (1.57542 GHz), GPS L2 (1227.60 MHz), GALILEO E1 (1575.42 MHz), GLONASS G1 (1602 MHz), BEIDOU B1 (1.5611 GHz) |
|---|---|
| Size | 244*165*64 mm |
| Weight | 710 g |
| Overall Gain | > 40 dB |
| Adjustable Gain GPS L1/GLONASS G1/GALILEO E1 | 0-40 dB |
| Adjustable Gain GPS L2 | 0-40 dB |
| Impedance | 50 Ohm |
| Input connectors | TNC-female |
| Operating temperature | – 40 – +75 °C |
| Power supply | +12VDC / 1600mA (sold separately) |
| Gain internally | +12 dB |
| Gain RF Out | +4 dB |
| Indoor coverage | up to 50 meters |
| Antenna power output | + 5 VDC, 100 mA |
| TX antenna gain | max. +4dBd, RHCP polarized |
