GNSS L1/L2/L5 KIT VERSIONS
| GNSS-L1L2L5-KIT1 |
Roger-GPS L1L2L5 band repeater, Standard PSU, GNSS-TW-3972-ANT, L-mount, 20 meter RF195 cable |
| GNSS-L1L2L5-KIT2 |
Roger-GPS L1L2L5 band repeater, Standard PSU, GNSS-TW-3972-ANT, L-mount, 30 meter RF195 cable |
| GNSS-L1L2L5-KIT3 |
Roger-GPS L1L2L5 band repeater, IP67 PSU, GNSS-TW-3972-ANT, L-mount, 20 meter RF195 cable |
| GNSS-L1L2L5-KIT4 |
Roger-GPS L1L2L5 band repeater, IP67 PSU, GNSS-TW-3972-ANT, L-mount, 30 meter RF195 cable |
| GNSS-L1L2L5-KIT5 |
Roger-GPS L1L2L5 band repeater, Standard PSU, GNSS-TW-3972-ANT, L-mount |
| GNSS-L1L2L5-KIT6 |
Roger-GPS L1L2L5 band repeater, IP67 PSU, GNSS-TW-3972-ANT, L-mount |
Key Features A single ROGER GNSS Repeater Package is enough to provide a GPS/GLONASS/GALILEO/ BEIDOU indoor coverage area of about 1000 square meters and a distance up to 50 meters from the repeater center. Mount the external antenna on the roof of the building and connect the cable supplied with the kit to the antenna and other end to the repeater installed indoors. Connect the power supply unit to the repeater, add you power cord, the repeater’s transmission gain to prevent a signal loopback but reaching maximum re radiation level, and indoor GPS/GLONASS/GALILEO/BEIDOU coverage is immediately available. Several ROGER GNSS Repeater Packages can be installed in the same building. Alternatively, the signal coverage provided by a single package can be extended with ROGER GNSS accessories, such as line amplifiers and signal splitters.

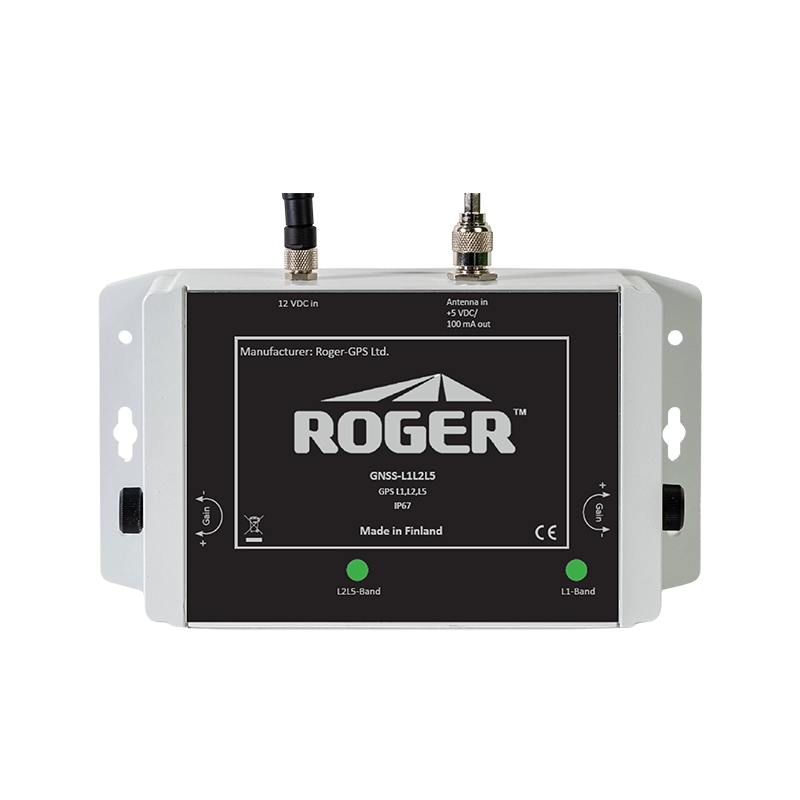

Technical Specifications GNSS-L1L2L5, GNSS repeater
| Frequency |
GPS L1 (1.57542 GHz), GPS L2 (1.2276 GHz), GPS L5 (1.17645 GHz) |
| Size |
220*121*63 mm |
| Weight |
563 g |
| Overall Gain |
> 40 dB |
| Adjustable Gain |
9-40 dB |
| Impedance |
50 Ohm |
| Input connector |
SMA-female |
| Operating temperature |
– 25 – +55 °C |
| Power supply |
+12VDC/300mA |
| Indoor coverage |
up to 50 meters |
| Antenna power output |
+ 5 VDC, 100 mA |
| TX antenna gain |
max. +4dBd, RHCP polarized |
