Portable GNSS repeater.
Use cases include Field Service, Public Safety, Mission Critical related tasks – whether it is location or timing related applications.
Everything you need for indoor GNSS in one compact case. Open the lid and setup the antenna and you are ready to go.
No need for fixed power connection when using battery.
Includes:

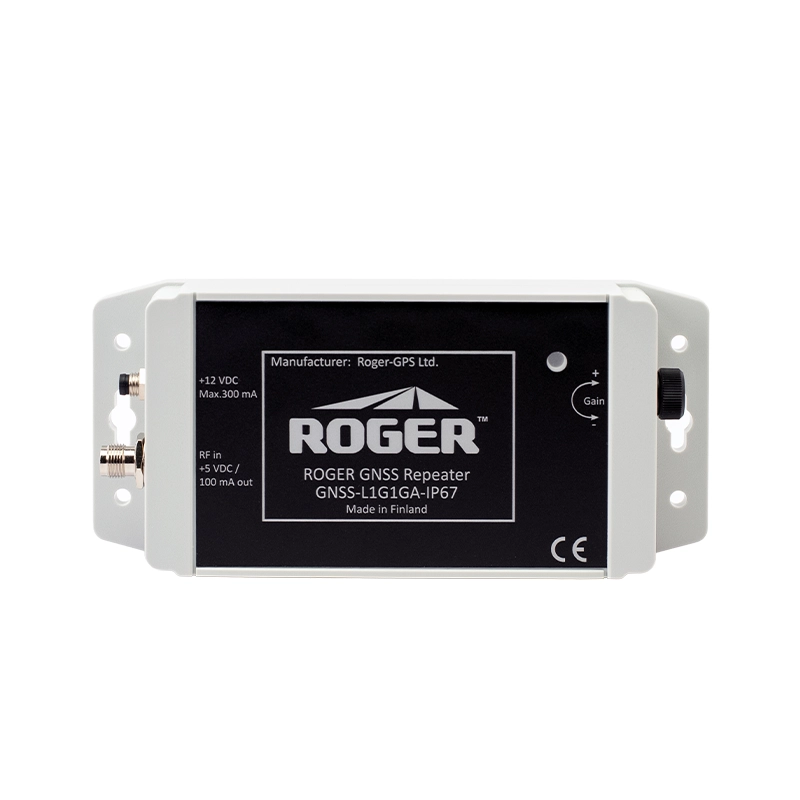

1. GNSS-L1G1GA repeater
2. 230V Power supply for charging the battery pack and powering up the repeater
3. Battery pack (8 Ah) if no power is available
4. Antenna mount for the antenna
5. GNSS antenna GNSS-TW-3742-ANT and 20m or 40m cable on reel
6. Reel holder for winding/unwinding of cable
7. Fuse for over current protection
8. 12V Power supply for AC/DC input and car battery/cigarette lighter adapter
Technical Specifications (GNSS-L1G1GA-IP67)
| Frequency | GPS L1 (1.57542 GHz), GALILEO E1 (1.57542 GHz), GLONASS G1 (1.602 GHz), BEIDOU B1 (1.5611 GHz) |
|---|---|
| Size | 46.23 x 34.04 x 17.02 cm (18.20” x 13.40” x 6.70”) |
| Weight | 5.9 kg |
| Overall Gain | > 40 dB |
| Noise Figure | < 2 dB |
| Adjustable Gain | 0-40 dB |
| Impedance | 50 Ω |
| Input connector | TNC-female |
| Operating temperature | -10 – +55 °C |
| Power supply | 110-230VAC – 12VDC/1.0A |
| Battery pack | Tracer BP2544 Lithium Polymer, 11.1V 8Ah |
| Antenna power output | + 5 VDC, 100 mA |
| TX antenna gain max | max. +4dBd, RHCP polarization |
