- Includes:

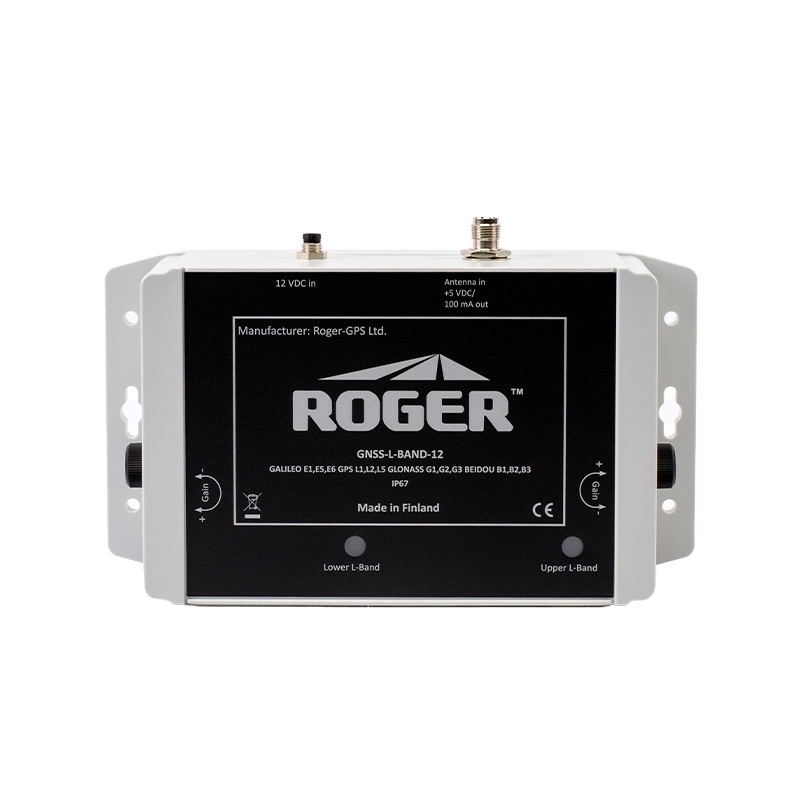

- 1. GNSS-L-BAND-12 repeater
- 2. Antenna L-mount for the antenna
- 3. GNSS antenna GNSS-TW-3990XF-ANT
- 4. 20m or 30m cable on reel
- 5. Standard power supply with EU or US or UK lead
Technical Specifications GNSS-L-BAND-12-KIT
| Frequency | GPS L1 (1.57542 GHz) GPS L2 (1.2276 GHz) GPS L5 (1.17645 GHz) GALILEO E1 (1.57542 GHz) GALILEO E5a (1.17645 GHz) GALILEO E5b (1.207140 GHz) GALILEO E6 (1.27875 GHz) GLONASS G1 (1.600995 GHz) GLONASS G2 (1.24806 GHz) GLONASS G3 (1.20714 GHz) BEIDOU B1 (1.5611 GHz) BEIDOU B2 (1.1890 GHz) BEIDOU B3 (1.26852 GHz) |
|---|---|
| Size | 220*121*63 mm |
| Weight | 563 g |
| Overall Gain | > 40 dB |
| Adjustable Gain | 9-40 dB |
| Impedance | 50 Ohm |
| Input connector | SMA-female |
| Operating temperature | – 25 – +55 °C |
| Power consumption | +12VDC / max. 300mA |
| Indoor coverage | up to 50 meters |
| Antenna power output | + 5 VDC, 100 mA |
| TX antenna gain | max. +4dBd, RHCP polarized |
| Antenna Gain | +38 dB |
| Cable Length | 20 meters or 40 meters |
